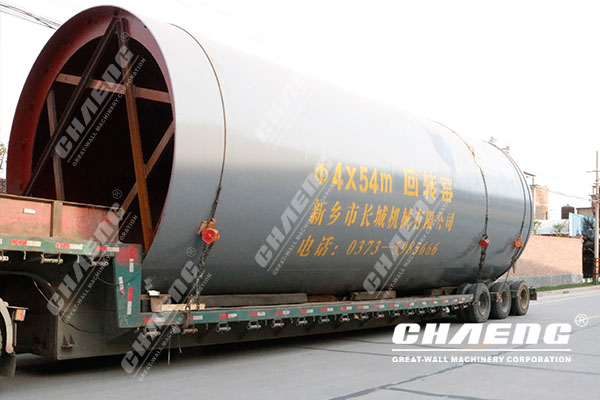

Shell is supported and rotary components in the rotary kiln equipment. The size and position tolerance requirements are high, and the processing quality directly affects the strength and sealing of the component. It is necessary to ensure that the equipment is safe and reliable during the operation of the equipment, and can be used continuously for a long time. Therefore, it is required that the metal material of the manufacturing cylinder is high, the plasticity is good, and it should have a certain impact resistance.

CHAENG ( xinxiang great wall )is designed for the process structure of the shell body according to the characteristics of the rotary kiln. The overall use of Q235-C steel plate roll welding is used to explore the welded welding to ensure its welding quality to ensure the safe and stable operation of the equipment. The thickness of the steel plate at different positions in the inner wall is different, and the steel plate is the thickest, which makes the design of the shell more reasonable, which not only ensures the rigidity of the cross section and improves the stress state of the supporting device.
