Marine rudder horn

The rudder horn is an arm-shaped member attached to the stern of the hull to support the semi-suspended rudder. Generally, its section is also designed to be streamlined to match the rudder blade. It is not only the arm-shaped member supporting the semi-suspended rudder but also the partial structure of the stern supporting the semi-balanced rudder. Its quality will directly affect the use of the stern of the hull.


Weight5-120 tons

MaterialManganese steel, carbon steel, etc.

ApplicationShipbuilding industry

CustomizableYes, according to customer's drawings

Our Advantages

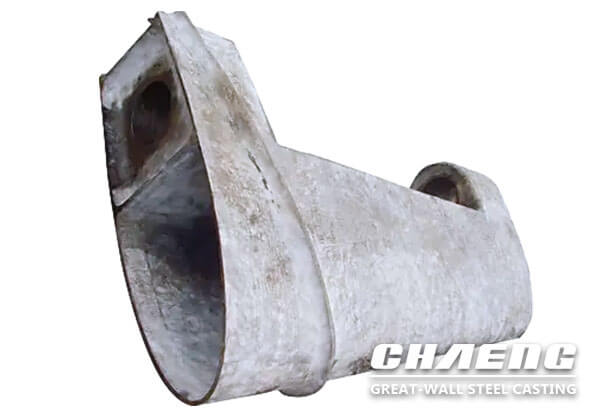

marine rudder horn steel casting

 1. CHAENG has a large casting base, which can customize steel casting rudder horns for customers in batches and can ensure product quality.

 2. During the entire casting process, the technical team will track the whole process to ensure that the performance of the steel castings meets the customer's requirements.

 3. CHAENG has more than ten years of casting experience and strong machining capabilities, and can meet the individual needs of customers.

 4. CHAENG has a team of technical experts who are responsible for the company's technology, process, management, and operation. It has established a set of scientific and perfect technology, production and operation management systems to effectively ensure product quality, and delivery time.

Production Process

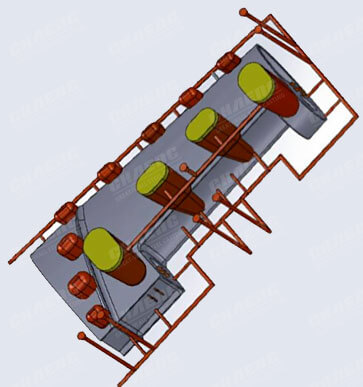

  • Simulation & analysis

    Simulation & analysis

  • Wood pattern

    Wood pattern

  • Sand mould

    Sand mould

  • Smelting


  • Molten steel test

    Molten steel test

  • Pouring


  • Sand cleaning

    Sand cleaning

  • Heat treatment

    Heat treatment

  • Finishing


  • Machining


  • Non-destructive testing

    Non-destructive testing

  • Packaging & delivery

    Packaging & delivery

Customer cases

In October 2022, a customer consulted us on the casting of the rudder horn. After a detailed understanding, the customer chose CHAENG as their supplier. During the pre-sales communication, we understood the customer's needs and carried out the casting process for this problem. Design and produce high-quality rudder horns for customers.

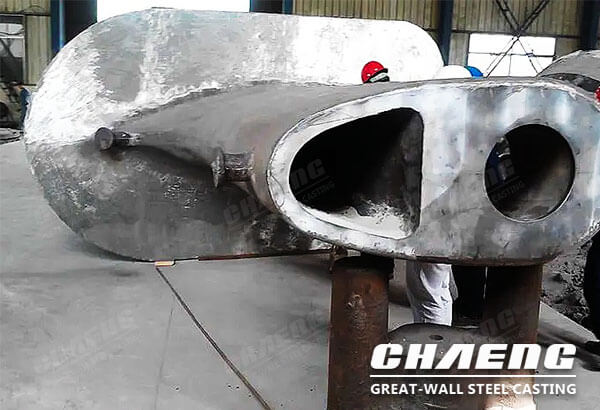

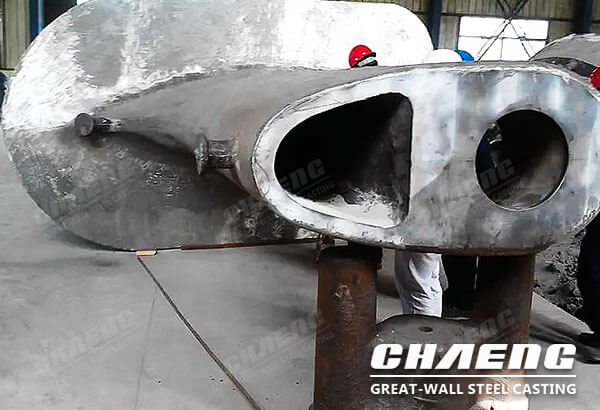

marine rudder horn steel casting manufacture by CHAENG
