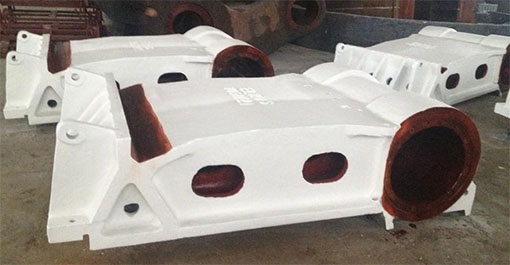

Crush Jaw

Weight : 1~150t

Material : ZG270-500

Applicable device: Large jaw crusher

Application: Mine, cement, chemical and others

Customizable: Yes

Crush Jaw is major component of large jaw crusher. It is widely used in the mine industry, chemical engineering, cement industry, steel and iron industry, etc. Great Wall Casting carries out the technology improvement and innovation in making the casting parts by summarizing our cast experience. The large movable jaw parts designed and manufactured from Great Wall Casting are advanced.

 Advantages:

1. The particular heat treatment technology is applied in movable jaw manufacturing by Great Wall Steel Casting, which makes product structure optimized and hardness improved. The product performance is also enhanced greatly.

2. The movable jaws are made by high strength steel. To ensure stability of component during long time operation and extend its service life, Great Wall Steel Casting also take the product optimization according to operation characteristics of jaw crusher.

3. Great Wall Steel Casting has high production capability in steel castings. For components such as movable jaw, we can take a batch manufacturing order in a very short period and with large production capacity.

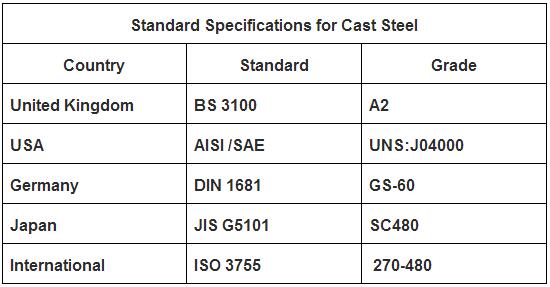

Our main material for the crush jaw is similar as followings:

standard specification-crush raw.jpg

Quality assurance:

The fabrication route is governed by the provisions of the implemented Quality System ISO 9001: 2000. The standard documentation ensures the full traceability of every process step:

• Manufacturer test certificates according to DIN EN 10.204 § 3.1 including chemical composition, mechanical properties and non-destructive examination;

• Dimensional check supported with a “as-built“ sketch;

• Record of the heat treatment chart;

Our service:

  • Prompt response in 24h after your inquiry
  • Several years high-precision processing experience

OEM service:

  • Advanced management ability with high technology
  • Strictly quality control
  • We design the production according to your drawings when you supply the design drawing.

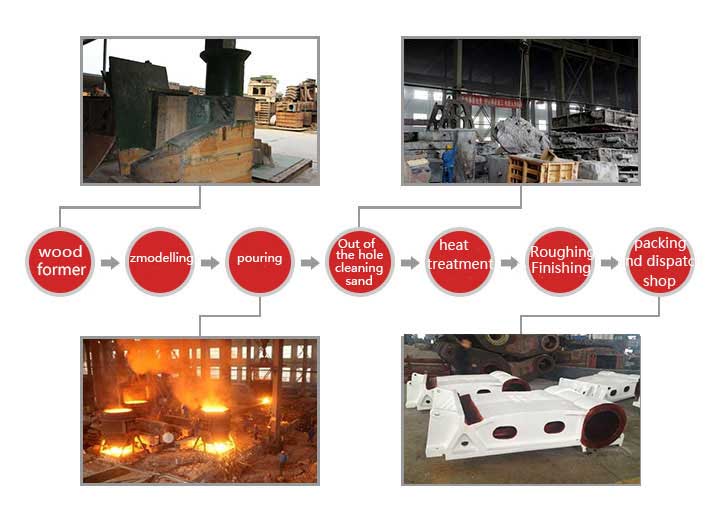

 Moving Jaw Manufacturing Process:

1. Wooden pattern Production

2. Molding

3. Pouring

4. First cleaning

5. Heat treatment – grinding (inspection)

6. Rough machining (inspection)-finishing machining (inspection)

7. Packing-delivering


 Case:

Russian Customer visited Great Wall Steel Casting in 2012. They found that our movable jaws will not only perfectly match the large jaw crushers they manufacture, but also enjoys longer service life and competitive price. And without any other hesitation, they finally decided to sign long-term purchase contract with Great Wall Steel Casting at once.
