Kiln Tyre

  • High Strength
  • Excellent Durability
  • Strong Adaptability

Weight : 5-80 t

Material : ASTM: 1045 / DIN: CK45

Applicable devices: rotary kiln

Application: Cement, Metallurgy, chemical industry, building etc.

Customizable : Yes, according to customers' drawings

Kiln tyre, also called riding ring, is one important part of rotary kiln. It transmits all gravity of rotary barrel (including refractory bricks, internal devices and raw material, etc.) to supporting roller, and ensures that barrel rotates smoothly on supporting rollers, as well as strengthens radial stiffness of barrel, therefore enough strength, durability and rigidity of rotary tyre are necessary.

Our Rotary Kiln Tyre's advantages:

1. High strength and good durability

2. Advanced double medium quenching process

3. High quenching hardness

4. Good wear resistance

5. Simple structure and easy to adjust and repair

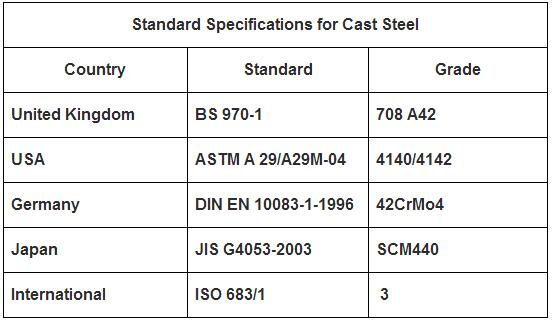

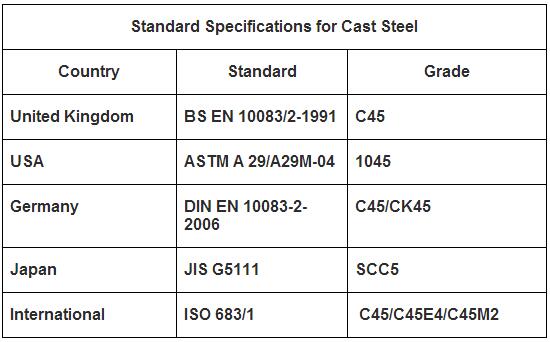

Our main material for the Rotary kiln tyre is similar to followings:

standatd specifications-Rotary Kiln Tyre.jpg

Rotary Kiln Tyre.jpg

Quality assurance:

The fabrication route is governed by the provisions of the implemented Quality System ISO 9001: 2000. The standard documentation ensures the full traceability of every process step:

• Manufacturer test certificates according to DIN EN 10.204 § 3.1 including chemical composition, mechanical properties and non-destructive examination;

• Dimensional check supported with a "as-built" sketch;

• Record of the heat treatment chart;

Our service:

  • Prompt response in 24h after your inquiry
  • Several years high-precision processing experience

OEM service:

  • Advanced management ability with high technology
  • Strictly quality control
  • We design the production according to your drawing when you supply the design drawing.

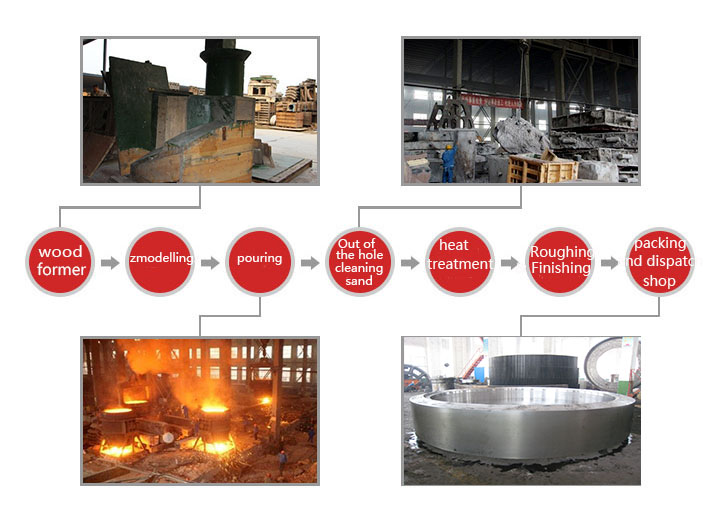

 Kiln Tyre Manufacturing Process:

1. Wooden pattern Production

2. Molding

3. Pouring

4. First cleaning

5. Heat treatment – grinding (inspection)

6. Rough machining (inspection)-finishing machining (inspection)

7. Packing-delivering

kiln tyre process.jpg

Case:

Kiln tyres manufactured by Great Wall Steel Casting have been exported to many countries abroad, including Italy, Turkey, and Chicago.

Note:

Great Wall Steel Casting can manufacture all types of rolling tyre according to customers’ drawings and sizes. You are warmly welcomed to visit our company!
