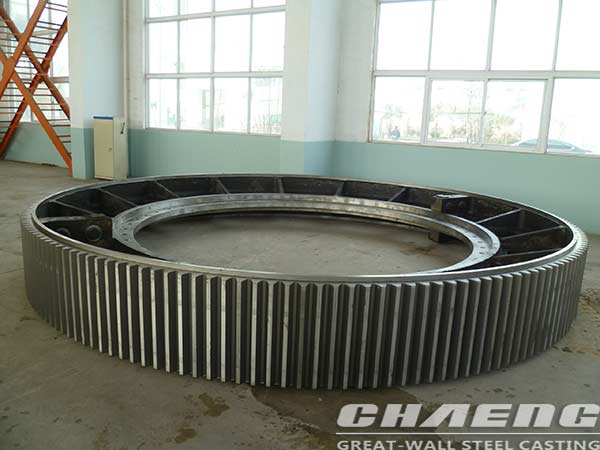

Rorary kiln girth gear should be installed correctly on kiln tube body to ensure the normal operation of rotary kiln. Then in the article, let's talk about something on the girth gear insallation.

    1. The center line of the gear must be coincident with the central line of the kiln cylinder.

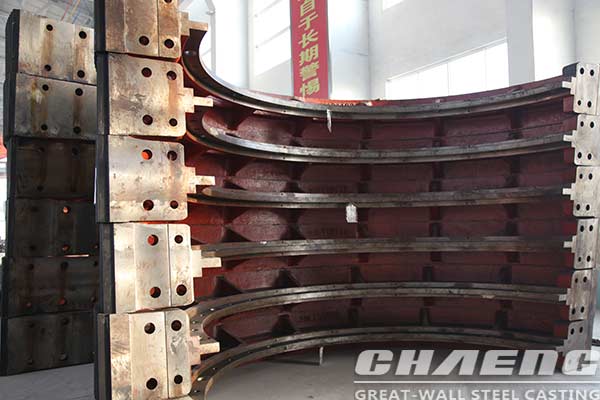

    2. Because of its large size, girth gear is generally separated into two or more pieces which are connected together with bolts.
    3. Girth gear is installed near the middle parts of kiln, so that kiln is stressed uniformly.

There are two kinds of connection methods between the girth gear and the rotary kiln, which are tangential connection and axial connection.

1. Tangential connection
Using tangential connection, you can insert a baching plate into the joint part, that will make it convenient to adjust central lines of girth gear and kiln.
Tangential connection has good flexibility, and can decrease impacts on girth gear and pinion gear. And its disadvantage is that it is not easy to find central lines, perform installations and manufacture gears.

2. Axial connection
Axial connection is to fix girth gear on the elastic steel plate which is parallel to the kiln cylinder body. During installing transmission equipment, the center lines of the girth gear and pinion gears should be kept parallel.

The pinion gear can be mounted directly below the girth gear and can also be mounted under the bevel.  When installed directly below, the force between the two gears make the bearing anchor bolt of pinion gear bear a large horizontal thrust.  When installed under the bevel, the pinion gear has the power of pushing up the kiln, and reduces the horizontal thrust of the anchor bolt of the pinion gear.

Axial connection is convenient for overhauling and improving the working conditions of the transmission device.
