Jaw crusher frame

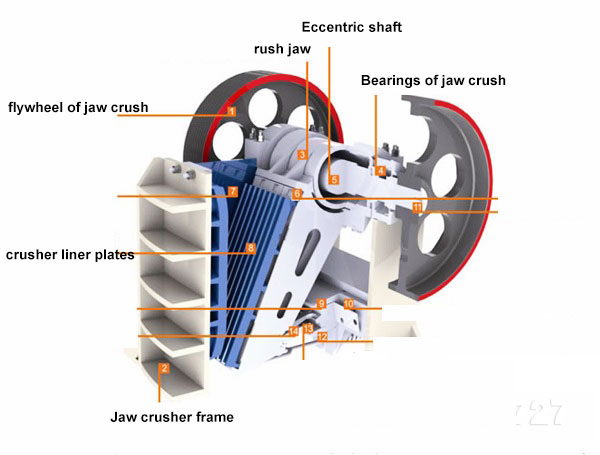

The jaw crusher is mainly composed of rod, spring, adjusting pad, adjusting seat, bracket, crusher jaw, eccentric shaft, movable jaw fixed wedge, movable jaw, side guard plate, crusher liner plates, Series of jaw crusher crusher crushing type, motor driven belt and pulley through the eccentric shaft to move up and down movement, when the move when the rising elbow plate and moving the angle between the larger, thus promoting the movement of jaw To be set close to the plate, at the same time the material is squeezed, rubbing, grinding and other forms of broken;
The working part of jaw crusher is the two jaw plates, one is the fixed jaw plate (fixed jaw), which is vertically (or the upper part slightly outward tilted) fixed on the front wall of the body, the other is the movable jaw plate (movable jaw) in tilting position, which forms the crushing cavity which has big upper part and small lower part with the fixed jaw plate. The movable jaw plate does the reciprocating motion to the fixed jaw plate periodically, sometimes separately, sometimes closely. When they are separated, the material will enter into the crushing chamber, and the finished product will be unloaded from the lower part; when close, the materials between the two jaw plates will be crushed through extrusion, bending and fracturing forces.
