Main components of ceramsite sand rotary kiln

22 Nov 2018 UTC+8Views:

rotary kiln

What are the components of the ceramsite sand rotary kiln?

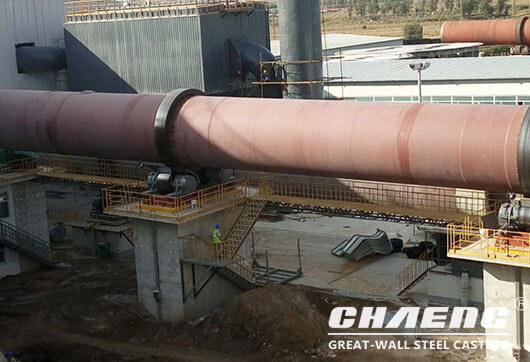

Let us briefly understand the structural composition of the ceramsite sand rotary kiln. The ceramsite sand rotary kiln is mainly composed of five parts: the rotary part, the support part, the transmission bearing, the sealing part and the burner.

The introduction of ceramsite sand rotary kiln components:

1. Main components of ceramsite sand rotary kiln

The rotary part of the ceramsite sand rotary kiln consists of large girth gear, riding ring, cylinder, riding ring pad, riding ring sections, brick block, kiln door guard, discharge pipe, etc.

2. Major large components of supporting part:

The supporting part of the ceramsite sand rotary kiln consists of the support roller, the support roller shaft, the support roller bearing seat, the supporting base, the thrust roller, thrust roller pedestal and so on.

3. The main components of the transmission bearing

The ceramsite sand rotary kiln drive bearing components consist of pinion gear, bearing housing, pin, pinion shaft, bushing, bolt, movable coupling, rubber block, fixed coupling, elastic ring, motor pair wheel, etc.

4.The main accessories of sealing part

The ceramsite sand rotary kiln sealing part includes kiln head, tail seal ring, graphite block, bracket, spring, tension bolt and so on.

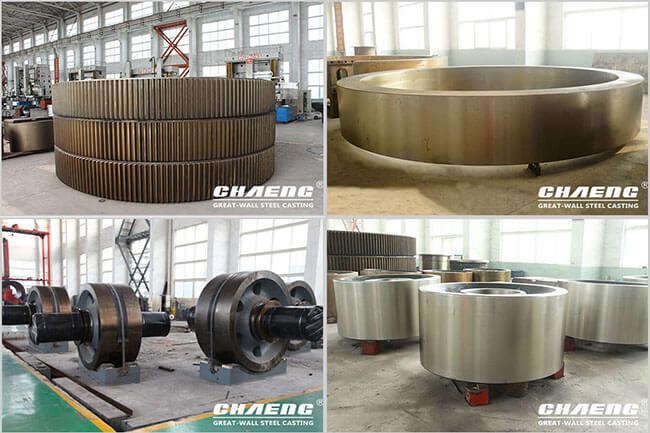

Great Wall Steel Casting (CHAENG) can provide rotary kiln components with a single-piece weight of more than one ton according to the drawings, including large girth gear, riding ring, kiln shell, pinion gear, bearing housing, thrust roller and so on. If you need to purchase large components for your rotary kiln, please feel free to contact us for a quote!

rotary kiln parts
